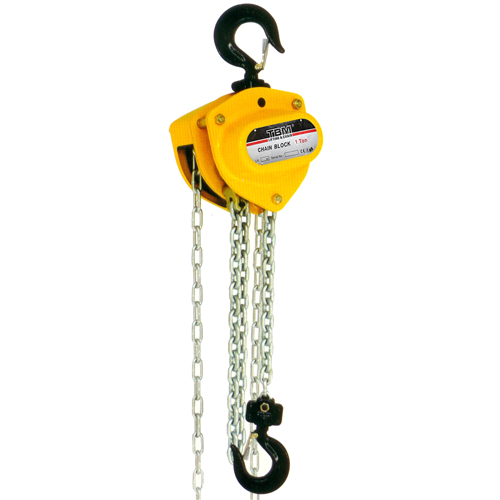

HSZ-A 816 Series Chain Block
1. Safety device could be used as an overload protection.
It could not only run smoothly if the load is added,
but also prevent the body from damaging.
2. The chain guide fixed in one end ,which could avoid chain twisting.
3. Hand chain link could avoid hand chain overturning.
Type |
HSZ-0.5A |
HSZ-1A |
HSZ-1.5A |
HSZ-2A |
HSZ-3A |
HSZ-5A |
Capacity(t) |
0.5 |
1 |
1.5 |
2 |
3 |
5 |
Lifting height(m) |
2.5 |
2.5 |
2.5 |
2.5 |
3 |
3 |
Load chain |
Number of falls |
1 |
1 |
1 |
1 |
1 |
2 |
Diameter X Pitch |
5X15 |
6X18 |
7X21 |
8X24 |
10X30 |
9X27/10X30 |
Force(N) |
240 |
250 |
265 |
335 |
372 |
360 |
Net weight(kg) |
9.3 |
12.2 |
16.5 |
19.5 |
36 |
41.1 |
Dimensions(mm) |
A |
148 |
172 |
196 |
210 |
255 |
280 |
B |
132 |
151 |
173 |
175 |
205 |
189 |
C |
23 |
26 |
29 |
34 |
37 |
40 |
D |
35 |
40 |
45 |
50 |
55 |
65 |
Hmin |
345 |
376 |
442 |
470 |
580 |
690 |
|
